Case report of rare hereditary disease in an icteric woman with cirrhosis

Introduction

Cirrhosis is a serious cause of death worldwide. There are liver fibrosis and structurally abnormal nodules among diffuse hepatic process in cirrhosis, which representing the final histological change for a multiple of chronic liver disease. Hepatitis B virus (HBV) and/or hepatitis C virus (HCV) infection are major causes of cirrhosis in China. Decompensated cirrhosis has numerous complications, including gastroesophageal varices, non-obstructive jaundice, ascites, hepatic encephalopathy, and even variceal bleed. It occurs mainly as consequence of portal hypertension and hyperdynamic circulation and their hemodynamic and metabolic effects (1).

Hereditary elliptocytosis (HE) is an inherited hematological disorder characterized by elliptically-shaped erythrocytes and hemolytic anemia. It is distributed by numerous ethnic groups, but it is more common in countries and regions of endemic malaria, particularly in the Africa (2,3). In China, HE is a rare disease which individual family cases or sporadic cases have been reported (4,5). Most of them are asymptomatic and it may present symptoms of anemia like fatigue. HE may rarely have jaundice and splenomegaly due to long-standing hemolytic anemia.

Cirrhosis don’t definitely have relation to HE, it has not reported that it concurrently happens in one patient yet. Here, we present a Chinese patient suffering from cirrhosis complicated with persistent jaundice, anemia and splenomegaly, as well as HE diagnosed by peripheral blood smear and the next genomic sequencing. We present this case in accordance with the CARE reporting checklist (available at https://dmr.amegroups.com/article/view/10.21037/dmr-22-62/rc).

Case presentation

A 52-year-old women was admitted to department of Infectious diseases on August 7, 2020, because of persistent jaundice and fatigue for more than 4 years. All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

The patient was diagnosed HBV-related cirrhosis and started the treatment of lamivudine 4 years ago, but she had then changed to entecavir therapy after one year in her past medical history. Before admitted to our hospital, the patient had the treatment of hepatoprotective drugs, but it was ineffective. She had no history of hypertension, diabetes mellitus, coronary heart disease, tuberculosis, residence of pastoral area, surgery or trauma. She had no history of cancer in the relatives. Her younger brother had chronic hepatitis B and treated with entecavir, and her son had also chronic HBV infection.

On physical examination, icteric sclera and skin, severe splenomegaly had been found, but no abdominal tenderness, ascites, heart problem, petechiae and ecchymoses were shown in the patient.

The liver function profiling at admission showed serum levels of total bile acid (T.BA), total bilirubin (T.BIL) and indirect bilirubin (I.BIL) elevated to 145.7 µmol/L (normal range, 0–10 µmol/L), 89.86 µmol/L (normal range, 0–23 µmol/L) and 65.65 µmol/L (normal range, 0–19 µmol/L), respectively. The blood routine tests showed decreased lower leukocytes of 2.17×10⁹/L (normal range, 3.5×10⁹/L to 9.5×10⁹/L) and platelets of 37×10⁹/L (normal range, 125×10⁹/L to 350×10⁹/L), respectively. Mean corpuscular volume and mean corpuscular hemoglobin were 109.3 fL (normal range, 82–100 fL) and 35.8 pg (normal range, 27–34 pg), respectively. The levels of hemoglobin, alanine transaminase (ALT), aspartate transaminase (AST), alkaline phosphatase (ALP), γ-glutamyl transferase (γ-GT), immunoglobulin G4 (IgG4), ceruloplasmin, glucose-6-phosphate dehydrogenase, folate and vitamin B12 were normal. Serum auto-antibodies of autoimmune liver diseases, direct and indirect combs tests, serum tumor markers and other hepatitis viral markers of hepatitis A virus (HAV), HCV, hepatitis D virus (HDV), cytomegalovirus (CMV) and Epstein-Barr virus (EBV) were negative. The abdominal ultrasonography indicated an image of cirrhosis, and revealed diffusive enlargement of the spleen (the long axis and thickness were 16.9 and 5.5 cm, respectively). Transient elastography showed liver stiffness of 25.4 kPa. Gastro-endoscopy showed severe esophago-gastric varices and chronic gastritis.

Based on the evidence of biochemical parameters and imaging results, the patient was confirmed the diagnosis with cirrhosis and anti-HBV therapy with entecavir (500 mg, once per day) continued. In addition, the patient had been done platelet transfusion at hospital, but all parameters did not improve. Because of hemolytic icteric in this patient, a peripheral blood smear showed approximately 60% of abnormal shape and appeared oval or elongated erythrocytes, from slightly egg-shaped to rod or pencil forms (elliptocytes) (Figure 1). Then we did the next genomic sequencing, a large fragment about 182.2 Kilo base pairs of heterozygous deletion was detected in p35.3 region of chromosome 1, including 1–15 exons of the erythrocyte membrane protein 4.1 (EPB41) gene (Figure 2).

Figure 1 By Wright’s-Giemsa stain, peripheral blood smear showed elliptocytes that appeared oval or elongated, from slightly egg-shaped to rod or pencil forms under the optical microscope.

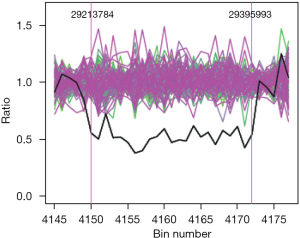

Figure 2 A schematic diagram of the ratio between the coverage depth of this area of the sample and the baseline by the bioinformatics algorithm. The black line represents this sample, and part of the coverage is half of the baseline (ratio =0.5), indicating heterozygous deletion in this area. Hg as the reference sequence, a large fragment of about 182.2 kb of heterozygous deletion was detected in the short arm of chromosome 1 (the start and end positions of the chromosome are 29213784 and 29395993). This region including exons 1 through 15 of the EPB41 gene (NM_004437.4). The bin number in the figure has no practical meaning to the interpretation result. EPB41, erythrocyte membrane protein 4.1.

The patient had lower platelets and ecchymosis in abdomen. We gave the suggestion of splenectomy and continued anti-HBV treatment of entecavir for her, but she refused to surgery. The patient lived in her hometown all time and did not come back to our hospital because of coronavirus disease 2019 (COVID-19) epidemic for about 2 years. We did the follow-up by call and the patient had a persistent jaundice and lower platelets as similar as before. Peripheral blood smear showed 70% elliptocytes of red blood cell (RBC) in her younger brother and her brother was surely made the clinical diagnosis of HE, but we have not done the gene profiling of HE in the relatives because they are living in different provinces.

Discussion

HE, inherited as an autosomal dominant trait, is attributed to mutation in any one of genes encoding skeleton proteins of the red cell membrane. It is not common in China and usually misdiagnosed. Mutations of HE located in the a-spectrin, b-spectrin, or protein 4.1 genes (6). Most abnormality was recognized the occurrence within spectrin so far (7), but the mutation caused by gene of 4.1 protein is rarely found. Heterozygous or homozygous mutation in the gene encoding EPB41 on chromosome 1p35 caused HE-1 and account for 5% (8). Over 25% of elliptocytes on peripheral blood smear and a positive family history should be important for diagnosis of HE (6), it might have slight decline of elliptocytes percent after splenectomy, it is helpful to distinguish liver disease from microvascular hemolytic disease. Here we report for the first Chinese patient with both HBV-related cirrhosis and HE, who had jaundice, splenomegaly, and pancytopenia for a long time. Peripheral blood smear showed approximately 70% elliptocytes in RBCs, as well as high-throughput sequencing revealed the EPB41 gene mutation in the patient.

The hematological characteristic of HE has an obvious increase of the elliptocytes in peripheral blood smear, due to the loss of the surface area of red blood cells and then the shape from a double concave disc to oval or even cell fragments (6,9). Abnormal erythrocytes and cell fragments are isolated and swallowed by the spleen due to overload, so that it has anemia and splenomegaly in patient with HE. HE is usually classified into 3 stages (10), there are normal hemoglobin levels and reticulocyte counts, and even no abnormal erythrocytes occurred in smears in asymptomatic patient with HE in stage 1. In stage 2 (hemolytic-compensated patients) the patient shows elevated reticulocyte counts and normal hemoglobin. In stage 3, the patient with hemolytic anemia, as well the increased heteromorphic erythrocytes and cell fragments. We thought this patient was in stage 3 due to persistent mild anemia during hospitalization.

Jaundice, as a common problem in clinical practice, it occurs secondary to intrahepatic and extrahepatic etiology and displays elevated serum bilirubin levels in the unconjugated or conjugated form. In this case, the patient indicated elevated unconjugated bilirubin that already had a hint to clinician. Similar clinical manifestation in both HE and cirrhosis, such as anemia, jaundice, and splenomegaly (11,12), which making diagnosis a challenge, may initially be the reason of no diagnosis of elliptocytosis in this patient. The patient has HBV-related cirrhosis and hypersplenism for a long time. We analyze the laboratory tests when the patient did not have good response to the therapy. Then we found numerous elliptocytes in the blood smear and finally diagnosed HE by gene detection.

HE and cirrhosis can cause splenomegaly and possibly worsen progress of disease each other. It is rarely needed in therapy of HE unless severe cases, RBC transfusions may particularly require during the neonatal period and in intercurrent illness (13,14). Because the spleen is an important organ for the site of erythrocyte sequestration and destruction in the adult, splenectomy has been the cornerstone of therapy for case with severe hemolytic HE to improve anemia, and avoid the formation of bilirubin gallstones. Most patients of HE with improvement in anemia and clinical symptoms after splenectomy operation. However, splenectomy is also associated with increased risk of the complications, such as infection, bleeding, and thrombosis. The mortality rate of splenectomy is about 5–10% (15). Our patient had made the detailed examination when she was admitted to hospital, and we finally diagnosed cirrhosis concomitant with HE. The case had some limitations. Firstly, the patient did not have splenectomy after the understanding for high risk of surgery, and no regular follow-up in clinic. Secondly, we have not done the family tree of HE including genetic background.

Conclusions

We firstly reported a case of cirrhosis concomitant with HE in China. We learnt more from all mentioned above. Firstly, the clinicians are easy to neglect usually hematologic diseases because of the patient with cirrhosis. Secondly, HE can also aggravate hypersplenism. Thirdly, we should understand the reasons when the patient has splenomegaly, low platelets and/or ineffective treatment. Finally, peripheral blood smear should be the best choose for clinicians, and it is cheap and convenient.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the CARE reporting checklist. Available at https://dmr.amegroups.com/article/view/10.21037/dmr-22-62/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dmr.amegroups.com/article/view/10.21037/dmr-22-62/coif). DC is a current employee of Guangzhou KingMed Diagnostics Group Co. Ltd. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
