A narrative review on COMMD1, the promiscuous ATP7B chaperone bridging the gap between inherited canine copper toxicosis and Wilson disease

Introduction

To accommodate the various functions of the liver, such as biotransformation, lipid homeostasis, glutamine, and urea production, the different cell types in the liver are structured in an orderly way and the functions are zonally distributed. For instance, the periportal area covering the portal vein, the hepatic artery, and the bile duct is involved in gluconeogenesis, beta-oxidation, cholesterol biosynthesis, and ureagenesis, whereas the central vein area is mainly responsible for glycolysis, bile acid production, glutamine synthesis, and biotransformation. Midway the Portal-Central axis the iron homeostasis is regulated, whereas the copper concentration is highest in the periportal zone (1,2). The very first in-depth single-cell RNA sequencing results confirmed the zonation pattern and indicated that around 50% of all liver genes are zonally distributed (3). The most abundant liver cell type is the hepatocyte, accounting for 2-thirds of all liver cells. Liver sinusoidal endothelial cells (blood vessel lining) around 15–20%, slightly more than the percentage of Kupffer cells (the liver-specific macrophages), and hepatic stellate cells (HSC) responsible for vitamin A storage. Cholangiocytes, the cells of the bile duct, are the least numbered cells in the liver, 5% at max (4-7). The crucial cell and driving force in liver fibrosis is the HSC. In a healthy liver, the HSCs are the main storage cells for vitamin A stored as Retinyl-Esters in large lipid droplets (LDs). LDs are intracellular organelles consisting of a hydrophobic core containing neural lipids (triacylglycerols, cholesteryl esters, retinyl esters) surrounded by a phospholipid monolayer and a specific set of proteins such as perilipins (8-10). In case of liver damage, the HSCs rapidly lose their LDs and transactivate into a profibrogenesis phenotype that is responsible for the production of extracellular matrix (ECM) proteins. This highly dynamic phenotypical shift, or transactivation, is the hallmark of fibrosis and occurs irrespective of the type of damage trigger. It is important to realise the crucial role of fibrogenesis in the deteriorating progression of liver diseases which often follows a pattern of (I) initial hepatitis, (II) liver fibrosis that extends to (III) liver cirrhosis which is correlated with (IV) increased risk to develop liver cancer.

Hepatic diseases have various underlying causes, for instance, (I) viruses like HAV, HBV, HCV, HDV, HEV, and (II) toxins, such as the peanut mold-derived aflatoxin, and drugs like the frequently used paracetamol, but also (III) inherited liver diseases caused for instance by elevated levels of intrahepatic copper. With on the one hand greatly improved prevention and treatment options for virally-induced hepatitis as a good sign of clinical achievements in recent years, the rise in nonalcoholic fatty liver diseases (NAFLD) is very worrisome. The importance and global burden of NAFLD do not need further introduction in this special issue given the fact that the quality of life of around 1 in every 4 humans worldwide is affected by some form of NAFLD, which includes simple steatosis or more advanced nonalcoholic steatohepatitis (NASH) (11,12). Taking into account that NAFLD is associated with an increased risk to develop type 2 diabetes, cardiovascular diseases, chronic kidney failure, and hepatocellular carcinoma (HCC) the term metabolic-associated fatty liver diseases (MAFLD) is suggested as being more appropriate (13). Surprisingly, in developed and developing countries the numbers are equally rising at a disturbing pace. In sharp contrast to the enormous large part of the world population affected by hepatic diseases presenting as a form of NAFLD/MAFLD, are the rare inherited copper-related hepatic disorders. This rarity might be explained by the specific chemical properties of copper.

The trace element copper is indispensable for various biochemical processes, yet at the same time, copper is involved in deleterious reactions caused by the involvement of copper in the formation of reactive oxygen species (ROS) (14,15). The transition element copper can be present in a reduced form as Cu⁺ and in an oxidized state as Cu⁺⁺, this makes copper ions particularly strong mediators of ROS formation in Fenton and Haber-Weiss chemistry. Because of these opposing positive and negative effects of copper in biological systems, intracellular free copper concentrations need to be kept within very narrow limits (16). The intricate intracellular copper homeostasis occurs at various levels such as the site of uptake, intracellular-binding and -distribution, and excretion. Uptake of copper is mediated via Copper Transporter 1 (CTR1), the main transmembrane copper import protein (17). CTR1 does not only transport copper; it can also transport zinc, which explains some of the protective effects of dietary zinc on copper toxicosis. Once inside the cell, copper-binding proteins maintain intracellular free copper levels low, these copper-chaperones include Cytochrome c Oxidase Copper Chaperone (COX17), Copper Chaperone for Superoxide Dismutase (CCS), and Antioxidant protein1 (ATOX1) (14,16). In addition, intracellular copper can be sequestered by glutathione and metallothionein, to minimize its disastrous radical-mediated impact on cellular components such as lipids, proteins, and DNA. To excrete copper the P-type ATPases ATP7A and ATP7B are crucial (18). Generally speaking, ATP7A determines the excretion of copper from the intestine into the bloodstream, whereas ATP7B, highly expressed in hepatocytes, dictates hepatic excretion. Once copper is excreted, ceruloplasmin mediates copper transport through the bloodstream. When the intrahepatic levels raise above 250 mg/kg dry weight liver (dwl) it may lead to the development of Wilson Disease (WD) in men (19). Clinical cases of hepatic copper accumulation are not restricted to men, but also are often observed in men’s best friend, the dog.

This chapter in the special issue “the pathogenesis of hepatic fibrosis: basic facts and clinical challenges” addresses the role of COMMD1 (COpper Metabolism Murr1 Domain-containing protein 1) which was discovered 20 years ago in a specific dog breed with inherited copper toxicosis (20), a disease, to a large extent similar to human WD. The key questions addressed here focus on how mutations in the COMMD1 gene lead to a COpper Mineral Mediated Disease in dogs and highlight how the promiscuous behavior of the COMMD1 protein explains a phenotype that is similar to WD which is caused by mutations in the ATP7B gene (21-23). The clinical challenges for WD are exemplary for the challenges most patients and researchers coping with rare diseases are confronted with. These typical challenges will be addressed and the overlap between ATP7B and COMMD1 might provide a solution for some of these hurdles such as difficulties in genetic screens and lack of proper animal models will be appreciated. The rational for this narrative is based on the promise that dogs can bridge between fundamental research findings and clinical practice. We present the following article in accordance with the Narrative Review reporting checklist (available at https://dmr.amegroups.com/article/view/10.21037/dmr-21-96/rc).

Methods

A monthly PubMed-search is done every month (latest time point for this manuscript October 2021), with keywords such as COMMD1, Wilson diseases, modifier genes, copper toxicosis and combinations hereof. Selected language was English. In addition, a search was done including specific authors such as Lutsenko, Weiss, Stremmel, and Czlonkowska, van de Sluis, Weiskirchen, to make sure to include as much as possible potentially relevant papers. Second screen was based on the abstract text of the papers in the first two searches. Lastly, whole manuscript text was analyzed of the selected group of papers that was finally included in this manuscript (Table 1).

Discussion

The unique population structure of dog breeds facilitates genetic research on rare inherited diseases

Domestication of dogs occurred thousands of years ago, but it was only in the latest century that selective inbreeding resulted in severe phenotypic features, such as excessive muscle formation, short limbs, or specific coat color in dogs (24). Several examples demonstrate how selection for phenotypic characteristics resulted in severe health issues for canines like the selection for a short nose leading to breathing problems (25). Fast-growing canine breeds may develop osteosarcoma, and breeds with long backs often get hernias. Different diseases occur in extraordinarily high prevalence within specific breeds selected for phenotypic extremes. Selective breeding has also resulted in increased prevalence of more complex genetic disorders including cancer, epilepsy, and cardiovascular diseases. The canine and human genome show high conserved synteny of over 95% similarity. The combination of this high similarity with the increased prevalence makes the dog a suitable naturally occurring genetic disease model.

Essential to note: diseases in the dog arise spontaneously. Therefore, these diseases are more comparable to human disease than artificially induced rodent models. Clinical presentation of disease and genomic structure in dogs is much more homogeneous than in humans (26), which increases power in genetic mapping studies. Mapping a complex trait is performed using a few hundred cases and controls. In humans, many thousands of patients are needed, and the number of necessary SNPs is 10-fold higher than in dogs (27). Also, the dog’s unique genomic structure allows for the detection of genetic modifiers. Especially, when due to inbreeding, fixation of a disease-causing variant occurred, the difference between being healthy and affected is determined by such a modifier, changing it into a disease-determining variant. After identification of new mutations in the current approach, canine models can be used in pre-clinical therapeutic intervention studies, for example for gene therapy (28).

Besides the benefit of being bred in a genetically isolated population, the dog has another benefit: the availability of affected tissue originating from a spontaneous disease model. Since the patients are no experimental animals, but client-owned animals, we are allowed under informed consent to isolate tissue upon euthanasia. This tissue can be used for research purposes and resembles the human affected tissue by means of pathological criteria, and size. Moreover, the size of dogs permits preclinical studies on e.g., liver stem cell transplantations (29,30).

The discovery of the causative mutation leading to inherited copper toxicosis in Bedlington terriers

As a result of selective inbreeding, hepatic copper toxicosis arose in several dog breeds. Veterinarians were aware of copper disorders in dogs for decades (31). The increased levels of hepatic copper are described in several dog breeds including Bedlington terriers, Skye terriers, West-Highland White terriers, Dobermanns, Dalmatians, and Labrador retrievers (32-37). Often this copper-mediated hepatitis is passed over to the next generation by a complex mode of inheritance, as pedigree studies revealed in most breeds, except the Bedlington terrier where a simple Mendelian mode of inheritance is observed.

The first description of copper toxicosis in US-based Bedlington terriers, a mid-sized dog breed, was reported as early as in the late seventies of the previous century with intrahepatic copper to 2,000 mg/dwl (32). The histological similarities with WD were obvious, regarding high hepatic copper levels and hepatic fibrosis. It should be noted that the intrahepatic copper levels in European Bedlington terriers have been observed as high as 12,000 mg/dwl which is way above the levels observed for human WD patients. Whereas in 1993 the causative mutation leading to WD was described (21-23), it took an additional eight years before the causative mutation for Bedlington terrier copper toxicosis was found. Tools in those days for dog genetics were lagging behind the tools available for human genetics (see legend Figure 1). One of the first successes of a microsatellite approach in canine genetics screens was the localization of the gene causing Bedlington terrier copper toxicosis with a set of as little as 213 microsatellite markers (59). A few years later, in 1999 a genetic mapping study proved that the copper toxicosis locus in Bedlington terriers was located on canine chromosome 10 region 2p26 (60). Using positional cloning, a large deletion of about 40 kB covering exon-2 of the MURR1 gene was identified as the causative mutation of Bedlington terrier copper toxicosis in 2002 (20). The precise breakpoints were described three years thereafter in 2005 (61). The current name for MURR1 is COMMD1 (COpper Metabolism Murr1 domain-containing protein 1), which is more in line with the mechanism of action of COMMD1 in hepatic copper homeostasis. A few studies unequivocally proved that COMMD1 activity reduces hepatic copper levels and mutations in the COMMD1 gene resulted in elevated intracellular copper levels (62-65). siRNA-mediated COMMD1-gene silencing in HEK293 cells (human embryonic kidney cells) and BDE-cells (canine liver cells) resulted in elevated intracellular copper levels, even in short-term cultures (62,63). Liver-specific COMMD1 knock-out mice had moderate levels of hepatic copper accumulation, although by no means as high as in the Bedlington terrier dogs (29,64,66). In liver organoids cultured from COMMD1-deficient dogs, lentiviral reconstitution of a functional COMMD1 protein resulted in a normalization of intracellular copper levels and survival of these cells under high copper culture conditions (65). These were solid proofs to verify the crucial role of COMMD1 in hepatic copper homeostasis. Ever since the 2002 discovery of COMMD1, a plethora of functions have been linked to COMMD1, for a recent review on the multi-potency of COMMD1, the readers are directed elsewhere (67-70).

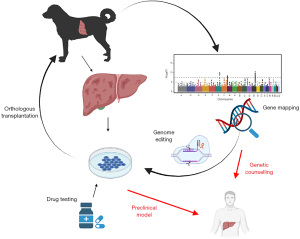

Figure 1 The translational power of canine patients in the investigation of challenges related to rare hepatic diseases. The unique population structure in specific dog breeds creates a genetic magnifier glass for gene discovery (and subsequent genetic counseling) studies that are hampered in men due to high genetic variability and low case numbers. In addition, the size of dogs, the physiological similarities, and their naturally occurring diseases make this species a pre-clinical bridge between mice and men (transplantation studies, gene editing, drug testing). These two specs point towards an important role dogs offer in the investigations on hepatic fibrosis, especially where it comes to challenges related to rare inborn errors of metabolism. This is an original figure. Two decades of canine genetic tools. The OMIA database (OnLine Mendelian Inheritance in Animals: www.omia.org) lists almost 800 traits or disorders described in dogs. The initiatives for more concerted investigations of the dog genome were first described in 1990 in the project entitled Canine Genome Project (doi: 10.1126/science.248.4960.1184). Three years later, Rine and Ostrander founded the Dog Genome Project, to take benefit from the often breed-specific cancers in dogs to advance human and canine cancer research (38). Canine-specific genetic tools were developed, such as radiation hybrid mapping, comparative chromosome maps, and microsatellite studies to facilitate canine genetic research [historical reviews (39-41)]. In 2004, a set of 327 canine chromosome-specific microsatellite markers was created to improve linkage studies (42). More advanced high-resolution SNP arrays were developed (43) which solidified the basis for the Illumina CanineHDarray and the Affymetrix 50kPlatinum array (44-48). At present, the most advanced marker platform is the Axiom Canine Genotyping Array with 460k markers (49). The landmark paper by Lindblad-Toh described a draft sequence covering ±99% of the dog genome (one Boxer with the name Tasha) combined with a single nucleotide polymorphism (SNP) map across 11 breeds (50). This was a strong improvement compared to the low coverage of the Poodle genome (51). The European Union realized the scientific potential of canine genetics for human genetics resulting in the LUPA-consortium (52). Apart from disease-specific discoveries this consortium focused on 44 genomic regions with extreme variations between breeds (53). More in-depth sequencing (CanFam 3.1) and RNA Seq data sets from 10 different tissues revealed over 175,000 expressed loci, 21,000 coding loci, in addition 4,600 antisense transcripts and over 7,000 non-coding transcripts (54). One of the last more generalized (not for a specific disease) discoveries was a set of canine-specific microRNAs based on CanFam3.1 (55). In order to aid in the annotation of long non-coding RNA sequences, FEELnc, was developed by several LUPA consortium members (56). The recently established Dog10K Consortium (http://www.dog10kgenomes.org/) aims to describe the enormous phenotypical variation between dogs breeds in molecular terms (57). Thereto, they target to generate a 20-time coverage of 10,000 dogs (58).

The work on copper toxicosis in Bedlington terriers resulted in the discovery of a novel copper homeostasis gene product, COMMD1 (20). This prompted geneticists to screen for COMMD1 mutations in copper storage diseases with thus far unknown genetic backgrounds such as Indian Childhood Cirrhosis, Endemic Tyrolean Infantile Cirrhosis, or Idiopathic Copper Toxicosis, very rare diseases with hepatic copper accumulation. No mutations in the COMMD1 gene were discovered in these patients (71). In WD patients COMMD1 mutations are described at very low frequencies and the COMMD1 variants seemed unrelated to the clinical presentation of the patients (72-76). Together, the involvement of COMMD1 mutations in human copper-related disorders is very limited, but this does not mean that the work on COMMD1 is of little value for WD research.

Challenges in WD diagnosis and partnering of the ATP7B and COMMD1 proteins

The timeline of milestones for WD, first described as early as 1912, is described in a historical review (77). The main drive of this disease, which presents with large clinical variations, is excessive hepatic copper accumulation. The ERN RARE-LIVER database (www.rare-liver.eu) states WD as a rare disease, with an estimated clinical prevalence of 1 per 30,000 in the general European population. A higher prevalence is described in several isolated communities (consanguinity) within Europe, such as Sardinia or the Canary Islands, with a 5–10 fold higher prevalence compared to the general European population (78). In several Asian regions, the prevalence of WD is doubled compared to the general European population (79,80). More recent population-based estimates suggest that the genetic prevalence in some areas might be 3 to 4 times the clinical presentation (81). Even larger differences in the prevalence in heath registers (±1.6/100,000) compared to mutation in the general population (±20/100,000) were reported (82). This points to the involvement of additional factors mediating genotype-phenotype differences, such as the activity of modifier genes, and or environmental factors.

The causative gene for WD was discovered in 1993, as the copper transporter ATPase2 (ATP7B) (21-23). The organ-specific expression of ATP7B, high in the liver but also other organs such as the brain, and parts of the small intestine, explains the clinical variations of WD including hepatic and neurological presentations (83-86). Around half of WD patients present with a clear hepatic phenotype, which has a gender predisposition, four times higher in females than in males in the case of the severe acute liver failure form. Liver-related features present already in childhood and young adults. Neurological symptoms occur later in life in a broad range of WD patients (20–65%), depending on the characteristics. A wide spectrum of movement disorders, including tremor, dystonia, and or parkinsonism present as early as the age 20–30 (80,86-88). As these neurological and psychiatric symptoms are separated from the hepatic presentation, the readers are directed to specific reviews on these aspects elsewhere (89-95). One very characteristic visual sign of WD is the presence of Kayser-Fleischer rings in the cornea, which is observed in most neurological WD patients, in hepatic or presymptomatic patients these ocular disturbances are less frequently observed (89). The variation in clinical presentation and the rarity of WD often results in a delayed clinical diagnosis with severe consequences (94).

The ATP7B gene spans over 80 kb on chromosome 13, and the longest liver transcript consists of all 21 exons covering around 8 kb. Smaller transcripts are present in the brain (95). The ATP7B protein consists of eight transmembrane regions forming a membrane channel, and the copper-binding domains are in the N-terminal part within the cytosol. The ATP7B protein channel function is responsible for about 95% of the excretion of hepatic copper into the bile. Taken into account well over 900 different mutations in the ATP7B gene (Human Gene Mutation Database professional 2021.3) (84,96,97), leading to variable activities of the ATP7B protein, and as a consequence, a large variation in the clinical presentation of WD, diagnosis of WD is challenging (81,98-100). The vast majority of the mutations (>60%) are missense and nonsense mutations. A clear genotype-phenotype correlation is lacking (101-106). Therefore, it is conceivable that modifier genes and/or environmental factors that affect the clinical presentation are into play here. Several potential modifier genes include ATOX1, XIAP (X-linked inhibitor of apoptosis), MTHFR (5,10-methylenetetrahydrofolate reductase), and COMMD1 (74,83,107-110). Less surprisingly, ATOX1, XIAP, and COMMD1 are directly or indirectly involved in copper binding. In addition to direct copper-binding within the COMMD1 protein, it turned out that COMMD1 interacts with ATP7A and ATP7B, to facilitate intracellular trafficking of the copper exporting ATPases from the Trans-Golgi-Network to the plasma membrane (111-113). Therefore, mutated COMMD1 directly affects ATP7Bs intracellular localization and the copper excretion function of ATP7B, explaining the similarities in the hepatic fibrotic phenotype of WD and canine copper toxicosis.

Discovery of novel copper homeostasis genes and modifier genes in copper toxicosis

Finding modifier genes in rare diseases is an immense genetic and clinical hurdle, given the low number of patients. Whereas copper toxicosis in Bedlington terriers segregates with a simple Mendelian mode of inheritance, for most dog breeds copper toxicosis is a more complex genetic disease. Due to selective inbreeding, genetic variants express at increased frequencies within specific dog breeds. As a result, rare human diseases can be highly prevalent in specific dog breeds.

Labrador retrievers is the most popular dog breed worldwide. In 2006 copper-associated hepatitis was described in this breed, presenting elevated ALT levels, and hepatic copper levels ranging between around 400–2,600 mg/dwl (37). A complex mode of inheritance was postulated (114). Several studies indicated that dietary restriction could improve the hepatic copper accumulation such as low copper diets especially so if zinc was elevated, and as for WD patients D-penicillamine was effective to lower hepatic copper levels (115-119). In view of the risk of hepatic copper and zinc deficiency, it was not recommended to use D-penicillamine lifelong (120). Gene expression pattern described the progression of copper toxicosis in Labrador retrievers, eluting the similarities between WD and copper toxicosis in this breed at the molecular levels (121). Considering the similarities with WD, researchers aimed to dissect the genetic background of Labrador copper toxicosis. To emphasize the power of canine genetics to dissect genetic causes in complex genetic diseases as little as 235 dogs were enrolled in a canine-specific genome wide association study (GWAS). This study revealed that an Arg1453Gln substitution in the ATP7B protein is causing increased hepatic copper levels, whereas a Thr327Ile variant in the ATP7A protein partially rescued the ATP7B phenotype (122). Similarly, an ATP7B mutation in Dutch and USA Dobermann pinchers increased hepatic copper levels. A mutation in ATP7A was also found in the Dutch Dobermann pinschers, however, there were too few cases to draw conclusions for the USA cohort (123). Beauty is in the eye of the beholder, but the fact that ATP7A is a modifier gene for ATP7B is astonishing given their high level of structural homology. In this breed, the high prevalence of mutations in ATP7A showed the power of canine genetics to find modifier genes. The fact that these mutations are in a gene that is causative for Menkes disease (MD), further highlights the potential of canine research for human genetics. Unlikely that this would have been discovered in men where MD is affecting 1 in 300,000 people. It turned out that COMMD1 mutations were involved in neither Labrador retrievers nor Dobermann pinchers copper toxicosis (124). Recently, RETN (coding for protein RESISTIN) was discovered as a novel modifier gene in copper toxicosis in Labrador retrievers (125). RESISTIN is involved in hepatic fat storage and mitochondrial defects, however, its low expression in the liver makes it difficult to directly associate RETN mutations with hepatic copper accumulation.

Dogs can solve pre-clinical problems associated with hepatic diseases

Longitudinal studies on COMMD1-deficient dogs revealed a progressive development of hepatitis similar to the development of chronic hepatitis, including WD, in men (126,127). This makes the COMMD1-deficient dogs a unique pre-clinical model to study the effects of cell-transplantations for inborn metabolic diseases. Five COMMD1-deficient dogs received autologous liver stem cells in which the functional COMMD1 gene was lentivirally-transduced (30). From a pre-clinical perspective, it was agreed upon with pediatricians that the portal vein was the preferred route of administration of the cells, as this was an approachable vein even in pediatric patients. To make a long story short, the transplanted cells could be recovered even up to two years post-transplantation. However, no functional recovery was observed on hepatic copper accumulation and copper excretion, which was explained by the limited number of transplanted cells in the recipient's livers. Only at a few locations, small clusters of transplanted cells were recovered accounting for less than 1% of the total number of hepatocytes. What caused this low engraftment is under investigation; either too few cells were transplanted (4×10⁸–9×10⁸ per dog in three consecutive daily injections), or the cells were not in the optimal differentiation status (partially hepatic, not purely proliferating stem cell phenotype), or despite being autologous the cells were rejected (cyclosporin treatment was given for 6 weeks), or other reasons. As the induction of ovulation in dogs is difficult, it will take a while before the offspring of the heterozygous parents will result in a sufficiently large study colony again.

Although the functional recovery was not achieved, this pre-clinical experiment in COMMD1-deficient dogs showed the possibility to provide autologous cells via the portal vein into the liver and showed long-term survival of the transplanted cells in the recipient. The 2 years longitudinal follow-up period provided critical information on the routing of transplanted cells, a basic question that could hardly be addressed in mice, given their small portal vein.

Future perspectives for health professionals and researchers

The key issue of this narrative is to create awareness that dogs can be instrumental in solving basic (genetics) and pre-clinical (transplantations) liver-related problems. First, the resultant of selected inbreeding is a narrow genetic basis within specific breeds working as a genetic magnifying glass, enabling the dissection of complex genetic and/or (very) rare disorders. Here it is to be realized that still some very rare copper storage diseases no causative mutations are discovered, such as for Indian Childhood Cirrhosis, Endemic Tyrolean Infantile Cirrhosis, or Idiopathic copper toxicosis (128-130). And the work on Labrador retrievers has indicated that modifiers genes can be found, actually a functional titration between ATP7B (WD) and ATP7A (MD) activities. Second, the size of dogs and the hepatic fibrosis progression, position dogs as relevant pre-clinical animal models to test dietary regimens and surgical interventions that are readily translatable to human clinical practice. Obviously, practical (costs, housing, reproduction) and ethical issues (appreciation of dog is often different than for mice) exclude large scale experiments in dogs. In view of the current debate on the utilization of experimental animals, liver organoid technology promises precision medicine without experimental animals. The combination of the gene-editing tool CRISPR/Cas9 with stem cell technology is gaining momentum (131-135). These technologies could be specifically rewarding for rare diseases, including inborn metabolic disorders (136,137).

Summary

WD and inherited canine copper toxicosis have several features in common. In some dog breeds mutations in ATPase transporters (involved in WD and MD in men) are also implicated in copper toxicosis. Genetic screens in dogs revealed a novel copper transport protein 20 years ago, COMMD1. In addition, COMMD1-deficient dogs were used as a pre-clinical animal model for stem cell transplantation. The intracellular interactions between ATP7B and COMMD1 explain partial overlap in clinical presentation between WD patients and dogs with copper toxicosis. As such dogs have had their fair share in solving some challenges related to rare forms of liver fibrosis. After all, the dog is men’s best friend. It is likely that in the years to come additional copper transporters and novel modifier genes will be discovered in the inbred dog population, realizing that around 35% of the idiopathic hepatic cases in dogs are related to copper (138). Mutual beneficial for patients and pets challenged with rare liver diseases.

Acknowledgments

Funding: None.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editor (Ralf Weiskirchen) for the series “The Pathogenesis of Hepatic Fibrosis: Basic Facts and Clinical Challenges” published in Digestive Medicine Research. The article has undergone external peer review.

Reporting Checklist: The authors have completed the Narrative Review reporting checklist (available at https://dmr.amegroups.com/article/view/10.21037/dmr-21-96/rc)

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at https://dmr.amegroups.com/article/view/10.21037/dmr-21-96/coif). The series “The Pathogenesis of Hepatic Fibrosis: Basic Facts and Clinical Challenges” was commissioned by the editorial office without any funding or sponsorship. The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
